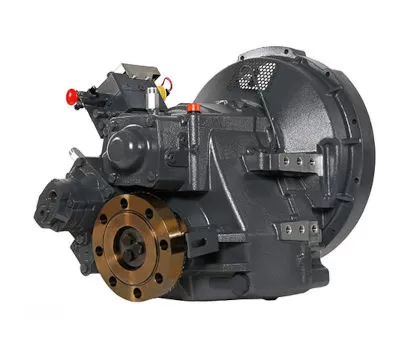

MGX-5126A
-
Power range, kW
321 - 783
-
Weight, kg
241
Specifications
Input ratings
| Reduction Ratios | Pleasure Craft | Light Duty | Intermediate Duty | Medium Duty | Continuous Duty |
| :1 | @ 2300 RPM | @ 2300 RPM | @ 2100 RPM | @ 1800 RPM | @ 1800 RPM |
|---|---|---|---|---|---|
|
1.03, 1.20, 1.48 1.75, 1.92, 2.04 |
783 kW (1050 hp) |
732 kW (982 hp) |
466 kW (625 hp) |
357 kW (479 hp) |
347 kW (465 hp) |
| 2.50 |
673 kW (902 hp) |
629 kW (843 hp) |
400 kW (536 hp) |
338 kW (453 hp) |
321 kW (430 hp) |
Dimensions and Weight
| C | 206 mm (8.11”) |
| S | 130 mm (5.13”) |
| F | 547 mm (21.53”) |
| L | 279 mm (11.00”) |
| R | 203 mm (8.00”) |
| A | 7° |
| Weight | 241 kg |
