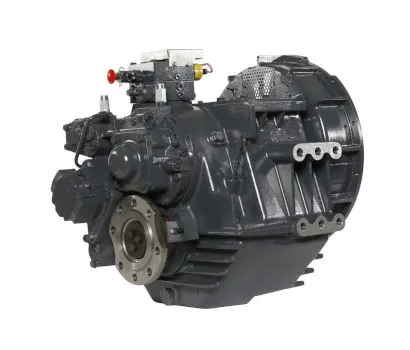

MGX-5136SC
-
Power range, kW
408 - 895
-
Weight, kg
294
Specifications
Input ratings
| Reduction Ratios | Pleasure Craft | Light Duty | Intermediate Duty | Medium Duty | Continuous Duty |
| :1 | пр 2300 RPM | пр 2300 RPM | пр 2100 RPM | пр 1800 RPM | пр 1800 RPM |
|---|---|---|---|---|---|
|
1.00, 1.10, 1.28 1.48, 1.73, 2.04 1.96 |
895 kW (1200 hp) |
746 kW (1000 hp) |
560 kW (751 hp) |
485 kW (650 hp) |
445 kW (597 hp) |
| 2.57 |
847 kW (1136 hp) |
716 kW (960 hp) |
|||
| 2.90 |
746 kW (1000 hp) |
671 kW (900 hp) |
522 kW (700 hp) |
448 kW (601 hp) |
408 kW (547 hp) |
Dimensions and Weight
| C | 200 mm (7.87”) |
| S | 190 mm (7.47”) |
| F | 572 mm (22.52”) |
| L | 305 mm (12.01”) |
| R | 305 mm (12.01”) |
| Weight | 294 kg |
