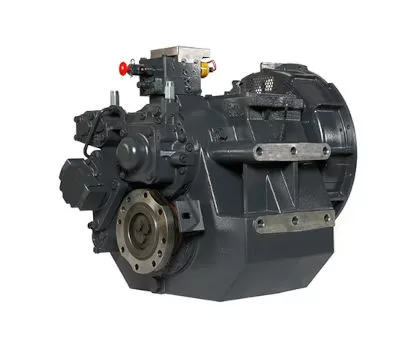

MGX-5146SC
-
Power range, kW
537 - 1142
-
Weight, kg
344
Specifications
Input ratings
| Reduction Ratios | Pleasure Craft | Light Duty | Intermediate Duty | Medium Duty | Continuous Duty |
| :1 | @ 2300 RPM | @ 2300 RPM | @ 2100 RPM | @ 1800 RPM | @ 1800 RPM |
|---|---|---|---|---|---|
|
1.03, 1.20, 1.33 1.48, 1.57, 1.75 1.96 |
1142 kW (1531 hp) |
974 kW (1306 hp) |
806 kW (1081 hp) |
671 kW (900 hp) |
612 kW (821 hp) |
| 2.50 |
952 kW (1277 hp) |
895 kW (1200 hp) |
702 kW (941 hp) |
552 kW (740 hp) |
537 kW (720 hp) |
Dimensions and Weight
| C | 206 mm (8.12”) |
| S | 179 mm (7.04”) |
| F | 572 mm (22.52”) |
| L | 305 mm (12.01”) |
| R | 305 mm (12.01”) |
| Weight | 344 kg |
