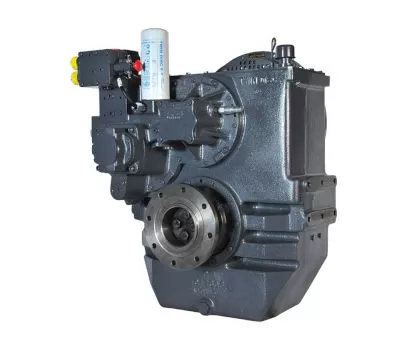

MGX-516
-
Power range, kW
406 - 530
-
Weight, kg
720
Specifications
Input ratings
| Reduction Ratios | Intermediate Duty | Medium Duty | Continuous Duty | |||
| :1 | @ 1800 RPM | @ 2100 RPM | @ 1600 RPM | @ 1800 RPM | @ 1600 RPM | @ 1800 RPM |
|---|---|---|---|---|---|---|
| 3.06 |
530 kW (711 hp) |
573 kW (768 hp) |
397 kW (532 hp) |
447kW (600 hp) |
397 kW (532 hp) |
447kW (600 hp) |
| 3.50 |
518 kW (695 hp) |
549 kW (736 hp) |
||||
| 4.04 |
494 kW (662 hp) |
521 kW (699 hp) |
||||
| 4.52 |
484 kW (649 hp) |
510 kW (684 hp) |
||||
| 5.05 |
468 kW (628 hp) |
492 kW (660 hp) |
||||
| 6.00 |
419 kW (562 hp) |
470 kW (630 hp) |
365 kW (489 hp) |
406 kW (544 hp) |
365 kW (489 hp) |
406 kW (544 hp) |
Dimensions and Weight
| C | 338 mm (13.29”) |
| S | 324 mm (12.77”) |
| F | 523 mm (20.59”) |
| L | 356 mm (14.00”) |
| R | 356 mm (14.00”) |
| Weight | 720 kg |
