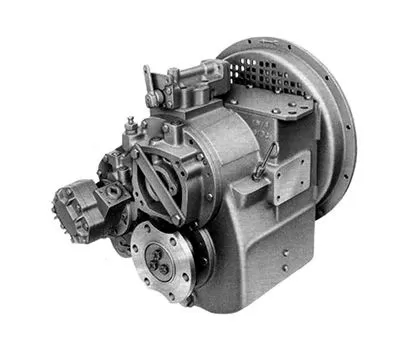

MG-5091DC
-
Power range, kW
205 - 321
-
Weight, kg
297
Specifications
Input Ratings
| Reduction Ratios | Pleasure Craft | Light Duty | Intermediate Duty | Intermediate Duty | Continuous Duty |
| :1 | @ 2300 RPM | @ 2300 RPM | @ 2100 RPM | @ 1800 RPM | @ 1800 RPM |
|---|---|---|---|---|---|
| 3.82 | Contact us | Contact us |
321 kW (431 hp) |
262 kW (351 hp) |
242 kW (325 hp) |
| 4.50 |
298 kW (400 hp) |
||||
| 5.05 |
251 kW (336 hp) |
210 kW (281 hp) |
205 kW (275 hp) |
Dimensions and weight
| C | 241 mm (9.49”) |
| S | 244 mm (9.60”) |
| F | 459 mm (18.09”) |
| L | 282 mm (11.12”) |
| R | 282 mm (11.12”) |
| Weight | 297 kg |
